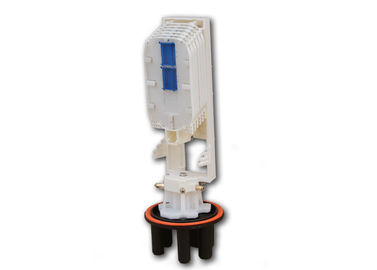

72 Cores FTTH Dome Fiber Optic Splice Closure with 7 cable ports , ABS PP IP68

72 Cores FTTH Dome Fiber Optic Splice Closure with 7 cable ports , ABS PP IP68
72 Cores FTTH Dome Fiber Optic Splice Closure with 7 cable ports , ABS PP IP68

Large Image :  72 Cores FTTH Dome Fiber Optic Splice Closure with 7 cable ports , ABS PP IP68

Product Details:
Place of Origin: CHINA
Brand Name: GST
Certification: ISO9001,TLC
Model Number: GJS20-DR05A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Packaging Details: CARTON 6pcs/box
Delivery Time: 3-5days
Payment Terms: T/T;LC/West Union
Supply Ability: 10000 sets/month
Detailed Product Description
High Light:

optical splice closure

,

fiber optic splice tray

,

72 Cores dome closure fiber optic

72 Cores FTTH Dome Fiber Optic Splice Closure with 7 cable ports , ABS PP IP68











Quick Detail:



IP68 Dome type fiber optic splice closure.1 oval port+6 round ports;Max 6 trays and 216 cores;Suit for 8-25mm cables;Used for aerial,wall mounted,pole mounted,man hole,duct mounting and pipeline,direct buried...etc





Description:



1. Protection grade:IP68

2. Material:PP,ABS(new first hand raw material)

3. Number of cable ports: 1 big oval port and 5 small round ports

4. Maximum Trays: 6 trays

5. Maximum Cores:216(singlel core)

6. Dimension (HxD):540mm *150 mm

7. Package material:Export Carton

8. Weight:4.0-4.5Kg

9. Cable diameter range:8-25mm

10. Sealing way of cables:Heat shrinking

11. Quality warrenty:2 years

12. Life span:more than 25 years





Applications:



Wall mounted,pole mounted,manhole,duct mounting,pipeline,direct buried,aerial..





Specifications:



Model

No.of ports

Cable range

 Max trays



Max Capacity

Dimensions

GJS20-DR05A

7(1oval+6round)

8-25mm

6

144 cores

540×ф150mm





Competitive Advantage:



  1. Easy & fast installation with no special tools,suit for uncut cables
  2. Superior sealing performance(free sample for testing)
  3. The closure can be repeatly used many times.
  4. The cables can be fixed via 3 points,safe and reliable
  5. Big capacity.Enough space for surplus fibers inside the closure
  6. Flexible branching for fibers
  7. loose leaf type of splice tray fixing,easy operation
  8. Modular fiber management system
