Product Details:
Payment & Shipping Terms:
|
| Product Name: | Dome Fiber Optic Splice Closure | Application: | Manhole|duct Mounting|direct Buried |
|---|---|---|---|
| Material: | PP|ABS | Maximum Cores: | 144(singlel Core) |
| Maximum Trays: | 6 Trays | Number Of Cable Ports: | 1 Big Oval Port And 5 Small Round Ports |
| Protection Level: | IP68 | ||
| Highlight: | optical splice closure,optical fibre splicing,144 cores fiber splice enclosure box |
||
Quick Detail:
IP68 Dome type fiber optic splice closure.1 oval port+6 round ports;Max 6 trays and 144 cores;Suit for 8-25mm cables;Used for wall mounted,pole mounted,man hole,duct mounting and pipeline,direct buried..
Description:
1. Protection grade:IP68
2. Material:PP,ABS(new first hand raw material)

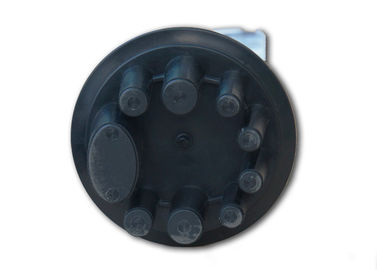

3. Number of cable ports: 1 big oval port and 5 small round ports
4. Maximum Trays: 6 trays
5. Maximum Cores:144(singlel core)
6. Dimension (HxD):540mm *150 mm
7. Package material:Carton
8. Weight:4.0-4.5Kg
9. Cable diameter range:8-25mm
10. Sealing way of cables:Heat shrinking
11. Quality warrenty:2 years
12. Life span:more than 25 years
Applications:
Wall mounted,pole mounted,manhole,duct mounting,pipeline,direct buried..
Specifications:
|
Model |
No.of ports |
Cable range |
Max trays
|
Max Capacity |
Dimensions |
|
GJS20-DR05A |
7(1oval+6round) |
8-25mm |
6 |
144 cores |
540×ф150mm |
Competitive Advantage:
