Product Details:
Payment & Shipping Terms:
|
| Product Name: | Dome Fiber Optic Splice Closure | Application: | Wall Mounted|duct Mounting|pipeline|direct Buried |
|---|---|---|---|
| Material: | PP|ABS | Maximum Cores: | 216(singlel Core) |
| Maximum Trays: | 9 Trays | Number Of Cable Ports: | 1 Big Oval Port And 5 Small Round Ports |
| Protection Level: | IP68 | ||
| High Light: | optical splice closure,fiber optic splice tray,IP68 Dome fiber joint closure box |
||
Quick Detail:

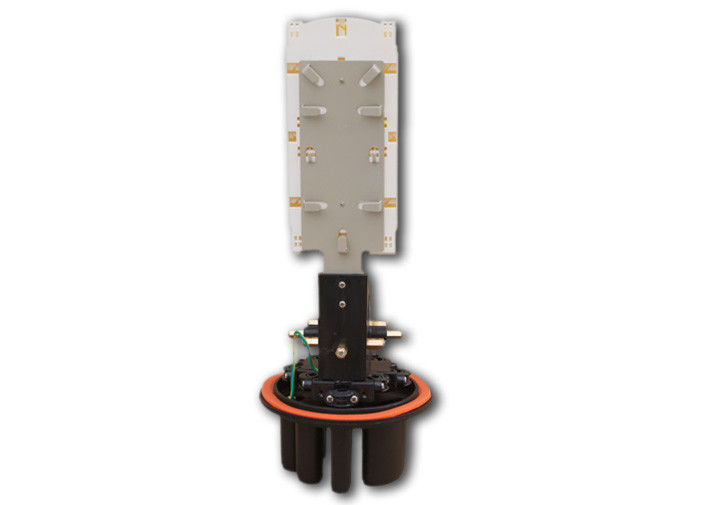

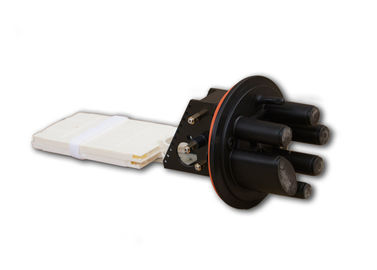

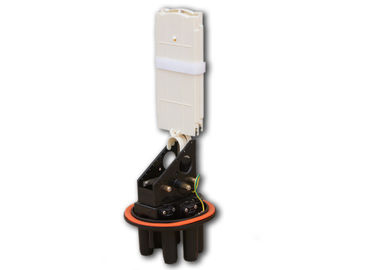

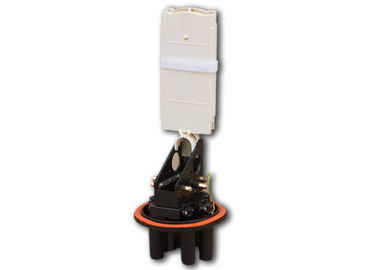

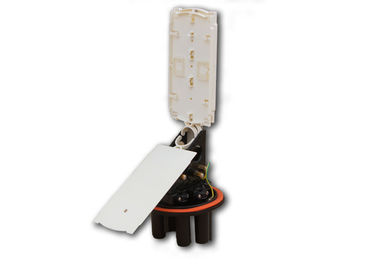

IP68 Dome type pole mount fiber optic splice closure.1 oval port+5 round ports;Max 9 trays and 216 cores;Suit for 8-25mm cables;Used for wall mounted,pole mounted,man hole,duct mounting and pipeline,direct buried..
Description:
1. Protection grade:IP68
2. Material:PP,ABS(new first hand raw material)

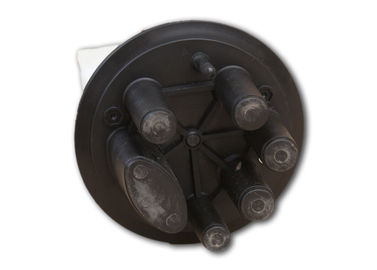

3. Number of cable ports: 1 big oval port and 5 small round ports
4. Maximum Trays: 9 trays
5. Maximum Cores:216(singlel core)
6. Dimension (HxD):540mm *150 mm
7. Package material:Carton
8. Weight:4.0-4.5Kg
9. Cable diameter range:8-25mm
10. Sealing way of cables:Heat shrinking
11. Quality warrenty:2 years
12. Life span:more than 25 years
Applications:
Wall mounted,pole mounted,manhole,duct mounting,pipeline,direct buried..
Specifications:
|
Model |
No.of ports |
Cable range |
Max trays
|
Max Capacity |
Dimensions |
|
GJS20-DR04A |
6(1 oval+5 round) |
8-25mm |
9 |
216 cores |
540×ф150mm |
Competitive Advantage:
