Product Details:
Place of Origin: CHINA
Brand Name: GST
Certification: ISO9001,TLC
Model Number: GJS20-DR03B-adapter
Payment & Shipping Terms:
Minimum Order Quantity: 100
Packaging Details: CARTON 6pcs/box
Delivery Time: 3-5days
Payment Terms: T/T;LC/West Union
Supply Ability: 10000 sets/month
Detailed Product Description
Product Name: Wall Mount Fiber Enclosure Application: Wall Mounted|pipeline|direct Buried
Feature: Waterproof Material: PP|ABS
Maximum Cores: 120(singlel Core) Maximum Trays: 4 Trays
Number Of Cable Ports: 1 Big Oval Port And 4 Small Round Ports Protection Level: IP68
High Light:

wall mount rack enclosure

,

fiber optic enclosures wall mount

,

fibre splice enclosure for pipeline



Dome heatshrink Wall Mount Fiber Enclosure waterproof IP68 for pipeline





Quick Detail:

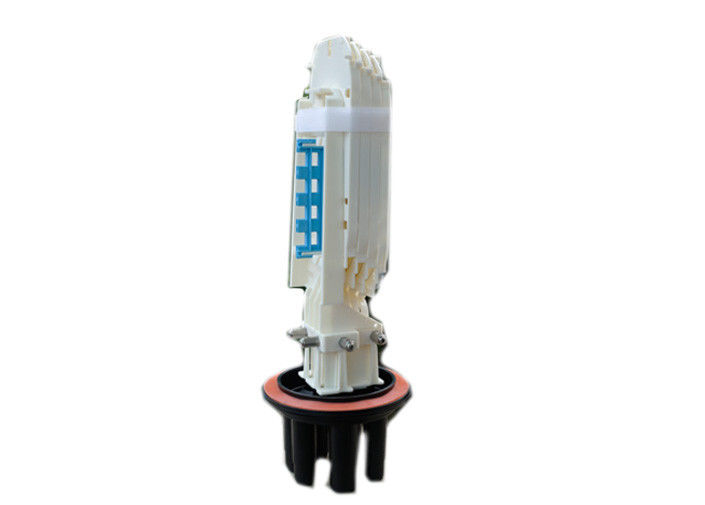

IP68 Dome type waterproof fiber optical closure.1 oval port+4 round ports/6port;Max 4 trays and 96 cores;Suit for 8-25mm cables;Used for wall mounted,pole mounted,man hole,duct mounting and pipeline,direct buried..





Description:



1. Protection grade:IP68

2. Material:PP,ABS(new first hand raw material)

3. Number of cable ports: 1 big oval port and 4 small round ports

4. Maximum Trays: 4 trays

5. Maximum Cores:120(singlel core)

6. Dimension (HxD):430mm *130 mm

7. Package material:Carton

8. Weight:2.5-3.0Kg

9. Cable diameter range:8-25mm

10. Sealing way of cables:Heat shrinking

11. Quality warrenty:2 years

12. Life span:more than 25 years





Applications:



Wall mounted,pole mounted,manhole,duct mounting,pipeline,direct buried..





Specifications:



Model

No.of ports

Cable range

 Max trays



Max Capacity

Dimensions

adapter

GJS20-DR03B-adapter

5(1 oval+4 round)/6port

8-25mm

4

96cores

430×ф130mm

4sc/6fc/6st/4lc





Competitive Advantage:



  1. Easy & fast installation with no special tools,suit for uncut cables
  2. Superior sealing performance(free sample for testing)
  3. The closure can be repeatly used many times.
  4. The cables can be fixed via 3 points,safe and reliable
  5. Enough space for surplus fibers inside the closure
  6. Flexible branching for fibers
  7. loose leaf type of splice tray fixing,easy operation&maintain
  8. Modular fiber management system
