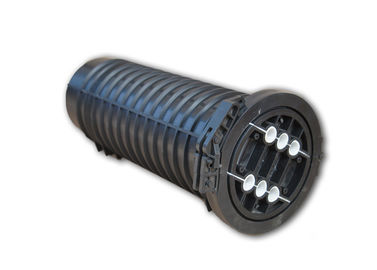

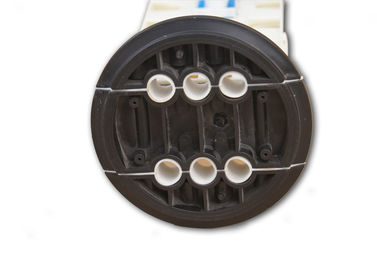

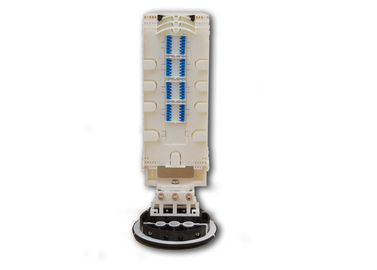

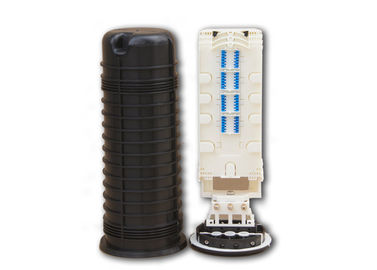

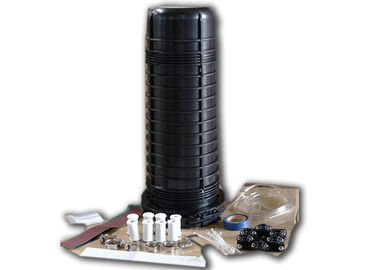

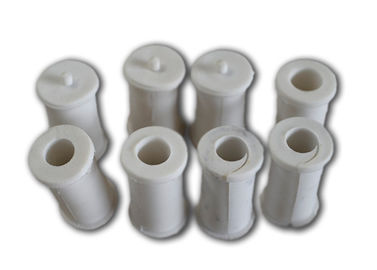

180 core IP68 Fiber Optic Splice Box Vertical Wall mounted with 3 trays

180 core IP68 Fiber Optic Splice Box Vertical Wall mounted with 3 trays
180 core IP68 Fiber Optic Splice Box Vertical Wall mounted with 3 trays 180 core IP68 Fiber Optic Splice Box Vertical Wall mounted with 3 trays 180 core IP68 Fiber Optic Splice Box Vertical Wall mounted with 3 trays 180 core IP68 Fiber Optic Splice Box Vertical Wall mounted with 3 trays 180 core IP68 Fiber Optic Splice Box Vertical Wall mounted with 3 trays 180 core IP68 Fiber Optic Splice Box Vertical Wall mounted with 3 trays

Large Image :  180 core IP68 Fiber Optic Splice Box Vertical Wall mounted with 3 trays

Product Details:
Place of Origin: CHINA
Brand Name: GST
Certification: ISO9001,TLC
Model Number: GJS20-DM02A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Packaging Details: CARTON 6pcs/box
Delivery Time: 3-5days
Payment Terms: T/T;LC/West Union
Supply Ability: 10000 sets/month
Detailed Product Description
Product Name: Fiber Optic Splice Box Application: Wall Mounted, Duct Mounting, Pipeline, Direct Buried
Material: PP, ABS Maximum Trays: 3 Trays
Number Of Cable Ports: 6 Protection Level: IP68
High Light:

fibre optic splice box

,

fiber optic splicing equipment



180 core IP68 Fiber Optic Splice Box Vertical Wall mounted with 3 trays





Quick Detail:



Vertical type mechanical sealing fiber optic splice closure.6 fiber cable entry ports ,max for 6 cables inlets and outlets;Max 3 trays and 180 cores(bunch)&432cores(ribbon);Suit for 8-20mm cables;Used for wall mounting,pole mounting,man hole,duct mounting , pipeline,direct buried..





Description:



1. Protection grade:IP68

2. Material:PP,ABS(new first hand raw material)

3. Number of cable ports: 6

4. Maximum Trays: 3 trays

5. Maximum Cores:180(bunch) ,432(ribbon)

6. Dimension (HxD):540mm *150 mm

7. Package material:Carton

8. Weight:3.5-4.0Kg

9. Cable diameter range:8-16mm

10. Sealing way of cables:Mechanical sealing

11. Quality warrenty:2 years

12. Life span:more than 25 years





Applications:



Wall mounted,pole mounted,manhole,duct mounting,pipeline,direct buried..





Specifications:



Model

No.of ports

Cable range

 Max trays



Max Capacity

Dimensions

GJS20-DM02B

6

8-20mm

3

180cores(bunch) 432cores(ribbon)

540×ф150mm





Competitive Advantage:



  1. Mechanical seaing,easy & fast installation with no special tools,suit for uncut cables
  2. Superior sealing performance(free sample for testing)
  3. The closure can be repeatly used many times.
  4. The cables can be fixed via 3 points,safe and reliable
  5. Enough space for surplus fibers inside the closure
  6. Flexible branching for fibers
  7. loose leaf type of splice tray fixing,easy operation&maintain
  8. Modular fiber management system
