286 core Fiber Optic enclosure PP , 7 small round ports 6 tray

286 core Fiber Optic enclosure PP , 7 small round ports 6 tray
286 core Fiber Optic enclosure PP , 7 small round ports 6 tray 286 core Fiber Optic enclosure PP , 7 small round ports 6 tray 286 core Fiber Optic enclosure PP , 7 small round ports 6 tray 286 core Fiber Optic enclosure PP , 7 small round ports 6 tray 286 core Fiber Optic enclosure PP , 7 small round ports 6 tray 286 core Fiber Optic enclosure PP , 7 small round ports 6 tray

Large Image :  286 core Fiber Optic enclosure PP , 7 small round ports 6 tray

Product Details:
Place of Origin: CHINA
Brand Name: GST
Certification: ISO9001,TLC
Model Number: GJS20-DR05a-7port-32sc-6tray
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: 40~50usd
Packaging Details: CARTON 6pcs/box 50x60x65cm
Delivery Time: 5-8days
Payment Terms: T/T;LC/West Union
Supply Ability: 5000 sets/month
Detailed Product Description
Product Name: Fiber Optic Joint Closure Application: Wall Mounted|duct Mounting|direct Buried|pipeline
Material: PP|ABS Maximum Cores: 144(singlel Core) +32sc
Maximum Trays: 6tray Number Of Cable Ports: 6 Small Round Ports+1big Round
Protection Level: IP68
High Light:

optical fiber jointing splicing

,

Fiber Optic Splice Closure



32sc 144 core Fiber Optic enclosure PP , 6 small round ports 6 tray





Quick Detail:



IP68 Dome type fiber optic splice closure.1 oval port+6 round ports;Max 8 trays and 288 cores,max ribbon fiber 864 core;Suit for 8-26mm cables;Used for wall mounted,pole mounted,man hole,duct mounting and pipeline,direct buried..





Description:



1. Protection grade:IP68

2. Material:PP,ABS(new first hand raw material)

3. Number of cable ports: 1 big oval port(74x54) and 6 small round ports(26.4)

4. Maximum Trays: 6 trays

5. Maximum Cores:144(singlel core)  32sc

6. Dimension (HxD):505mm *200 mm

7. Package material:Carton

8. Weight:5.0-5.5Kg

9. Cable diameter range:10-26mm

10. Sealing way of cables:Heat shrinking

11. Quality warrenty:2 years

12. Life span:more than 25 years





Applications:



Wall mounted,pole mounted,manhole,duct mounting,pipeline,direct buried..





Specifications:



Model

No.of ports

Cable range

 Max trays



Max Capacity

Dimensions

GJS20-DR05B-7port

7(1oval+6round)

10-26.5mm

6

144+32sc

505×ф200mm

GJS20-DR05B-7port-ribbon

7(1oval+6round)

10-26.5mm

2

288 cores

505×ф200mm





Competitive Advantage:



  1. Easy & fast installation with no special tools,suit for uncut cables
  2. Superior sealing performance(free sample for testing)
  3. The closure can be repeatly used many times.
  4. The cables can be fixed via 3 points,safe and reliable
  5. Big capacity.Enough space for surplus fibers inside the closure
  6. Flexible branching for fibers

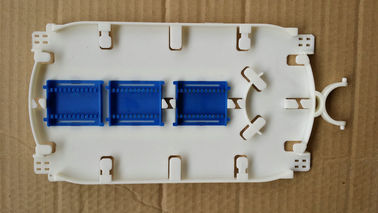

  7. loose leaf type of splice tray fixing,easy operation&maintain
  8. Modular fiber management system

286 core Fiber Optic enclosure PP , 7 small round ports 6 tray 0286 core Fiber Optic enclosure PP , 7 small round ports 6 tray 1286 core Fiber Optic enclosure PP , 7 small round ports 6 tray 2



286 core Fiber Optic enclosure PP , 7 small round ports 6 tray 3286 core Fiber Optic enclosure PP , 7 small round ports 6 tray 4
