4 trays Fiber Optic Splice Box

4 trays Fiber Optic Splice Box
4 trays Fiber Optic Splice Box 4 trays Fiber Optic Splice Box 4 trays Fiber Optic Splice Box 4 trays Fiber Optic Splice Box 4 trays Fiber Optic Splice Box 4 trays Fiber Optic Splice Box

Large Image :  4 trays Fiber Optic Splice Box

Product Details:
Place of Origin: CHINA
Brand Name: GST
Certification: ISO9001,TLC
Model Number: GJS20-DM01A-02a-plc
Payment & Shipping Terms:
Minimum Order Quantity: 100
Packaging Details: CARTON 6pcs/box
Delivery Time: 3-5days
Payment Terms: T/T;LC/West Union
Supply Ability: 10000 sets/month
Detailed Product Description
Product Name: Fiber Optic Joint Closure Application: Wall Mounted, Manhole, Duct Mounting
Material: PP, ABS Maximum Cores: 96(singlel Core)
Maximum Trays: 4 Trays Number Of Cable Ports: 1 Big Round Port And 4 Small Round Ports
Protection Level: IP68
High Light:

fibre optic splice box

,

fiber optic splicing equipment

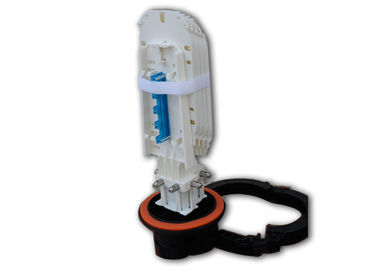

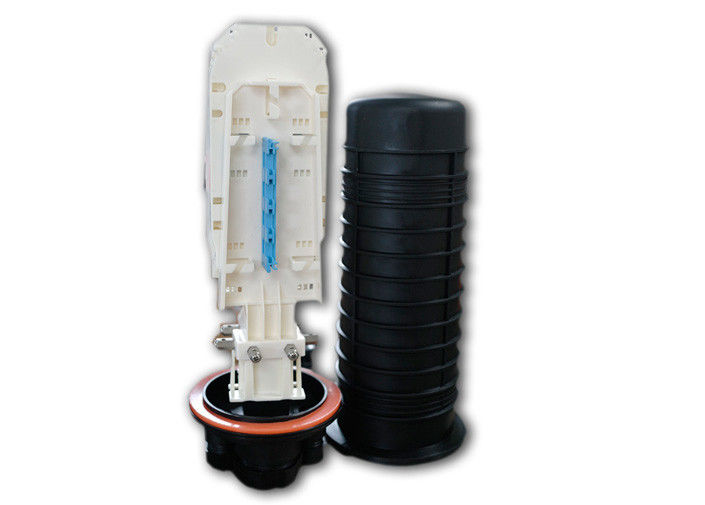

4 trays Fiber Optic Splice Box for Wall mounted with Dome mechanical type





Quick Detail:

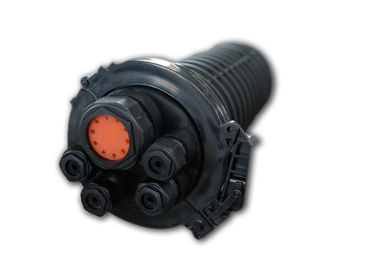

Dome mechanical type fiber optic splice closure.1 big round port+4 small round ports max for 4 cables+16cable  in &out;Max 4 trays and 96 cores;Suit for 8-16mm cables;Used for wall mounting,pole mounting,man hole,duct mounting , pipeline,direct buried, mechanical seal..





Description:



1. Protection grade:IP68

2. Material:PP,ABS(new first hand raw material)

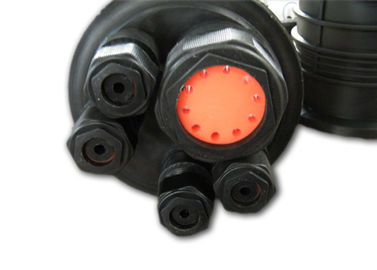

3. Number of cable ports: 1 big round port and 4 small round ports, max for 4 cables+16X6mmcable

4. Maximum Trays: 4 trays

5. Maximum Cores:96(singlel core)

6. Dimension (HxD):430mm *130 mm

7. Package material:Carton

8. Weight:2.5-3.0Kg

9. Cable diameter range:8-16mm

10. Sealing way of cables:Mechanical seal

11. Quality warrenty:2 years

12. Life span:more than 25 years





Applications:



Wall mounted,pole mounted,manhole,duct mounting,pipeline,direct buried..





Specifications:



Model

No.of ports

Cable range

 Max trays



Max Capacity

Dimensions

GJS20-DM01A-02a-plc

5

8-16mmX4+16x6

4

96 cores

430×ф130mm





Competitive Advantage:



  1. Mechanical seaing,easy & fast installation with no special tools
  2. Superior sealing performance(free sample for testing)
  3. The closure can be repeatly used many times.
  4. The cables can be fixed via 3 points,safe and reliable
  5. Enough space for surplus fibers inside the closure
  6. Flexible branching for fibers

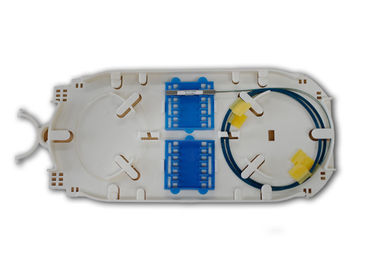

  7. loose leaf type of splice tray fixing,easy operation
  8. Modular fiber management system
