IP68 waterproof Fiber Optic Splice Closure for duct mounting ABS

IP68 waterproof Fiber Optic Splice Closure for duct mounting ABS
IP68 waterproof Fiber Optic Splice Closure for duct mounting ABS IP68 waterproof Fiber Optic Splice Closure for duct mounting ABS IP68 waterproof Fiber Optic Splice Closure for duct mounting ABS IP68 waterproof Fiber Optic Splice Closure for duct mounting ABS

Large Image :  IP68 waterproof Fiber Optic Splice Closure for duct mounting ABS

Product Details:
Place of Origin: CHINA
Brand Name: GST
Certification: ISO9001,TLC
Model Number: GJS20-DR02A-5port-6holder-pp
Payment & Shipping Terms:
Minimum Order Quantity: 100
Packaging Details: CARTON 6pcs/box
Delivery Time: 3-5days
Payment Terms: T/T;LC/West Union
Supply Ability: 10000 sets/month
Detailed Product Description
Product Name: Fiber Optic Splice Closure Application: Duct Mounting, Direct Buried, Pipeline
Material: ABS, PP Maximum Cores: 96(singlel Core)
Maximum Trays: 4 Trays Number Of Cable Ports: 4 Round Ports
Protection Level: IP68
High Light:

Dome Fiber Optic Splice Closure

,

Fiber Optic Joint Closure



IP68 waterproof Fiber Optic Splice Closure for duct mounting ABS





Quick Detail:



IP68 Dome type fiber optic splicing closure.4 round ports,1 oval port ;Max 4 trays and 96 cores;Suit for 8-20mm cables;buffer storge,6holder-pp,Used for wall mounted,pole mounted,man hole,duct mounting and pipeline,direct buried..





Description:



1. Protection grade:IP68

2. Material:PP,ABS(new first hand raw material)

3. Number of cable ports: 4 round ports,1 oval port-60x32

4. Maximum Trays: 4 trays

5. Maximum Cores:96(singlel core)

6. Dimension (HxD):430mm *130 mm

7. Package material:Carton

8. Weight:2.5-3.0Kg

9. Cable diameter range:8-20mm

10. Sealing way of cables:Heat shrinking

11. Quality warrenty:2 years

12. Life span:more than 25 years

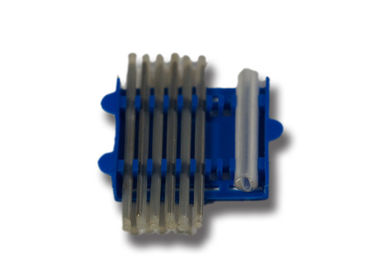

13. buffer storge,6holder-pp





Applications:



Wall mounted,pole mounted,manhole,duct mounting,pipeline,direct buried..





Specifications:



Model

No.of ports

Cable range

 Max trays



Max Capacity

Dimensions

GJS20-DR02A-6holder-pp

5

8-20mm

4

96cores

430×ф130mm





Competitive Advantage:



  1. Easy & fast installation with no special tools
  2. Superior sealing performance(free sample for testing)
  3. The closure can be repeatly used many times.
  4. The cables can be fixed via 3 points,safe and reliable
  5. Enough space for surplus fibers inside the closure
  6. Flexible branching for fibers
  7. loose leaf type of splice tray fixing,easy operation&maintain
  8. Modular fiber management system





IP68 waterproof Fiber Optic Splice Closure for duct mounting ABS 0IP68 waterproof Fiber Optic Splice Closure for duct mounting ABS 1
