Dome mechanical seal optical fiber splice closure pp abs sillicon rubber,overhead 505(l)xd200mm max288core, GJS20-DM0

Dome mechanical seal  optical fiber splice closure pp abs  sillicon rubber,overhead  505(l)xd200mm max288core, GJS20-DM0
Dome mechanical seal  optical fiber splice closure pp abs  sillicon rubber,overhead  505(l)xd200mm max288core, GJS20-DM0

Large Image :  Dome mechanical seal optical fiber splice closure pp abs sillicon rubber,overhead 505(l)xd200mm max288core, GJS20-DM0

Product Details:
Place of Origin: CHINA
Brand Name: GST
Certification: ISO9001,TLC
Model Number: gjs20-dr04a-9port
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: 35~55usd
Packaging Details: CARTON 6pcs/box
Delivery Time: 10-15days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5000 sets/month
Detailed Product Description
7port: Dome+7port 288core: 288
Type: Gjs20-dr05A-7port Tray: 12pcs
Material: Pp+abs Ip Grade: Ip 68
High Light:

mechanical seal optical fiber splice closure

,

dome mechanical fiber optic splice closure

,

mechanical seal fiber optic splice enclosure

Dome mechanical seal optical fiber splice closure pp abs sillicon rubber,overhead 505(l)xd200mm max288core, GJS20-DR05A- 7 ports


Quick Detail:

Dome mechanical fiber optic splice closure.
1 big round (dual hole) port+6 small round ports max for 10 cables in &out;Max 12 trays and 288 cores ribbon 576core ;Suit for 8-20mm cables;Used for wall ,pole,duct , buried..


Description:

1. Protection grade:IP68
2. Material:PP,ABS(new first hand raw material)
3. Number of cable ports: 1 big round port and 8 small round ports
4. Maximum Trays: 12trays
5. Maximum Cores:288(singlel core) ribbon 576
6. Dimension (HxD):505mm *200 mm
7. Package material:6pc/1Carton 0.25cbm
8. Weight:5.0-5.5Kg
9. Cable diameter range:8-20mm
10. Sealing way of cables:Mechanical seal
11. Quality warrenty:2 years
12. Life span:more than 20 years


Applications:

Wall mounted,pole mounted,manhole,duct mounting,pipeline,direct buried..



Specifications:

Model No.of ports Cable range Max trays
Max Capacity Dimensions
GJS20-DM05A 9 8-20mm 12 288 cores 505×ф200mm


Competitive Advantage:

1.1 The closure can be used in duct, buried, overhead..etc
1.2 High quality impact material.pp and internal is aABS
1.3 Cable magement system
1.4 Cable diameter range: 10~20
1.5 Sealing way of cables:Mechanical seaing by silicon rubber
1.6 Quality warranty:2 years
1.7 Life span:more than 25 years
1.8 IP rating is IP68

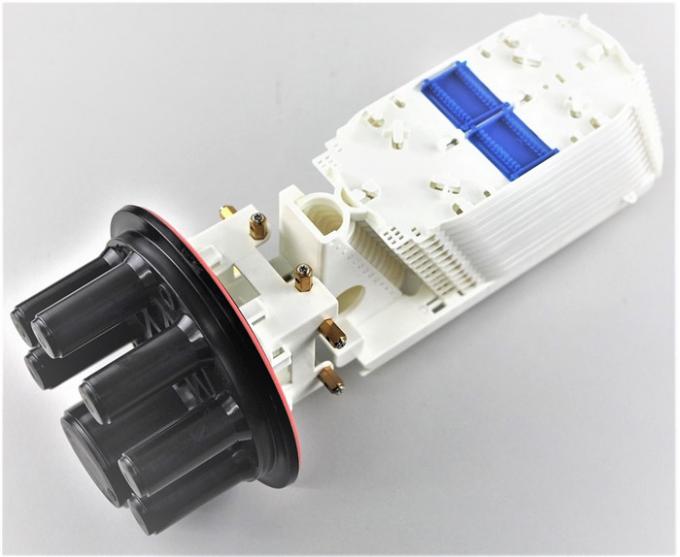

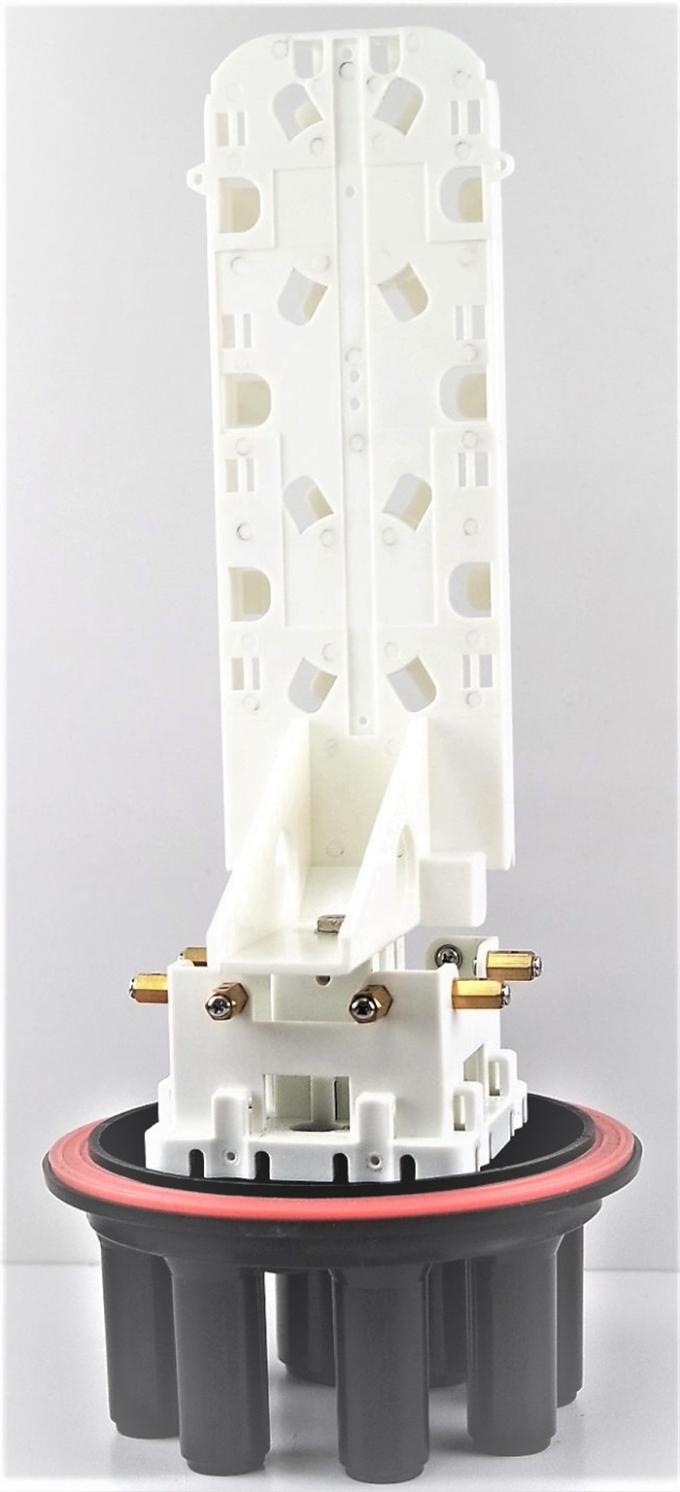

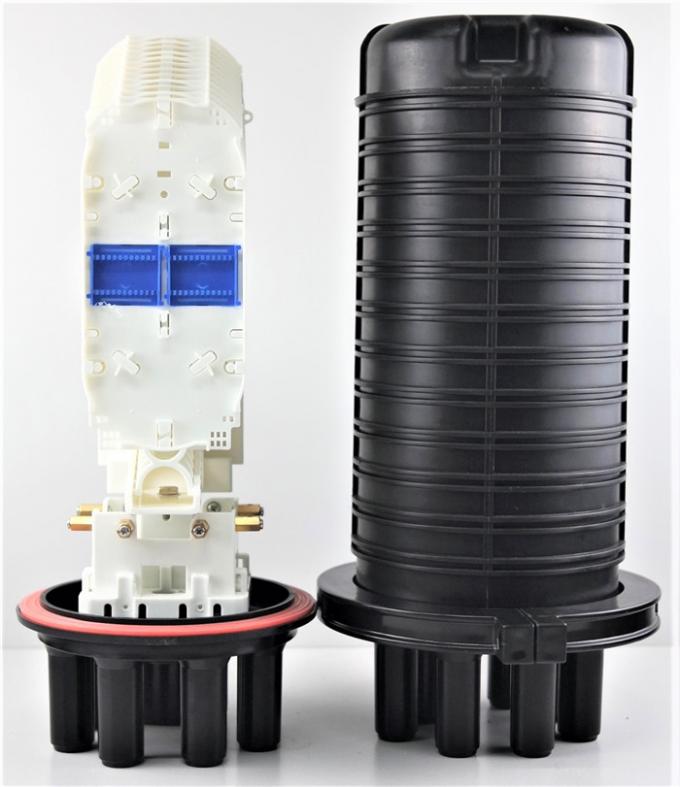

Dome mechanical seal  optical fiber splice closure pp abs  sillicon rubber,overhead  505(l)xd200mm max288core, GJS20-DM0 0Dome mechanical seal  optical fiber splice closure pp abs  sillicon rubber,overhead  505(l)xd200mm max288core, GJS20-DM0 1Dome mechanical seal  optical fiber splice closure pp abs  sillicon rubber,overhead  505(l)xd200mm max288core, GJS20-DM0 2
