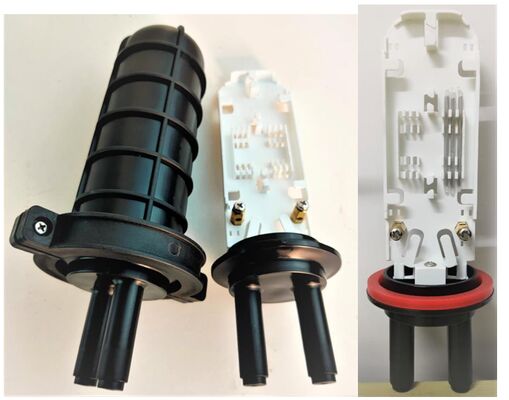

PP.ABS Fiber Optic Splice Closure -30°C ~ +60°C with 6 round ports

PP.ABS Fiber Optic Splice Closure -30°C ~ +60°C with 6 round ports
PP.ABS Fiber Optic Splice Closure -30°C ~ +60°C with 6 round ports

Large Image :  PP.ABS Fiber Optic Splice Closure -30°C ~ +60°C with 6 round ports

Product Details:
Place of Origin: CHINA
Brand Name: GST
Certification: ISO9001,TLC
Model Number: GJS20-DR02A-6port
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: 20usd~ 28usd
Packaging Details: CARTON 6pcs/box
Delivery Time: 3-5 Days
Payment Terms: TT LC West Union
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
MATERIAL: PP.ABS TRAY: 4
BUFFER: Buffer Storge Fiber Holder: 12
Port: 6 Environment Temperature:: -30°C ~ +60°C
Highlight:

PP ABS fiber optic splice closure

,

fiber optic splice closure 6 ports

,

fiber optic closure temperature resistant


IP68 Grade Fiber Optic Joint Closure 3 in 3 out 96 Fibers with 6 round ports


Description

GJS20-DR07A can be used to splice the fibers and put in aerial, manholes. The dome is made from high-strong plastics PP( polypropylene) and formed the shape with mold plastics under high pressures inject. High mechanical intensity, corrosive-resistance, anti-thunderstruck and long service life. Application: 1. suitable small munber Fiber cable spl





Application:

1. suitable small munber Fiber cable splice.
2. easy operation with small size. Eazy holding everywhere
3. suitable Maintenance, it is convenient to handle..
4. it can be reopened many times
5. it can be protect water in


Feature

1. Protection grade:IP68
2. Material:PP,ABS
3. Entry ports: 2x12mm round
4. Core number: max 6/12
5. Maximum Trays: 1trays
6. Dimension (HxD):230mm *65 mm
7. Environment temp: :-30℃~+60℃
8. Pressure:70kPa~106kPa
9. Sealing:Heat shrinking port +mechanical seal dome
10. Quality warrenty:2 years
11. Life span:more than 20 years
12. Weight:0.4-0.6Kg
13. Suitable for duct ,overhead buried .
14. Material:Higt strength polypropylene(PP)


Specifications:



Description Type Quantity (pcs)
Heatshrink Protector Tube 19/6-150 2
Fiber Optic Splice Sleeve   6
Label   1
Cable Tie   4
Tinfoil Paper   2
Sand Paper   1
Tape   1
PVC Protect Tube   1







Pictures:





PP.ABS Fiber Optic Splice Closure -30°C ~ +60°C with 6 round ports 0

PP.ABS Fiber Optic Splice Closure -30°C ~ +60°C with 6 round ports 1









Tag:

Fiber Splice Enclosure,

Fiber Optic Joint Closure,

Dome Fiber Optic Splice Closure
